SOCKET PnP CAP REMOVAL TOOL
ESD COMPLIANT
TOOL STEP TIME(S) 6-15 SECONDS
TOOL LIFE GOAL >100,000 CYCLES
FACTORY PROCESSOR INSERTION/REMOVAL TOOL
ESD COMPLIANT
TOOL STEP TIME(S) 6-15 SECONDS
TOOL HANDLE SIZE 50 mm
TOOL LIFE GOAL >100,000 CYCLES
ACCIDENTAL PROCESSOR DROP - PROCESSOR CANNOT BE RELEASED UNTIL TOOL IS PLACED IN SOCKET
FIELD PROCESSOR INSERTION/REMOVAL TOOL
ESD COMPLIANT
TOOL STEP TIME(S) 30-60 SECONDS
TOOL LIFE GOAL 10 CYCLES
CONTACT INFORMATION FOR INTEL TOOLS:
Name
Email
Phone
Todd Ewing (Texas)
todd_ewing@ccicamerica.com
512-637-1472
Alice Cheng
alice_cheng@ccic.com.tw
+886-2-29952666 ext 1814
Monica Chih
monica_chih@ccic.com.tw
+886-2-29952666 ex 1131
Intel has developed Processor Insertion/Removal Tools to provide you consistent, controlled inserting and
removing sockets covers and processors on Intel Server Boards.  Chaun Choung Technology also known
as CCI is manufacture and distributer of these Intel designed tools.
Please download our quote
form for pricing for purchases
through our US office Chaun
Choung Technology America,
inc.

Please contact Todd Ewing if
you have any questions.
CHAUN CHOUNG TECHNOLOGY AMERICA, INC.
Part of the Chaun-Choung Technology Group
Part Number: G29360
LGA 115X (Socket H)

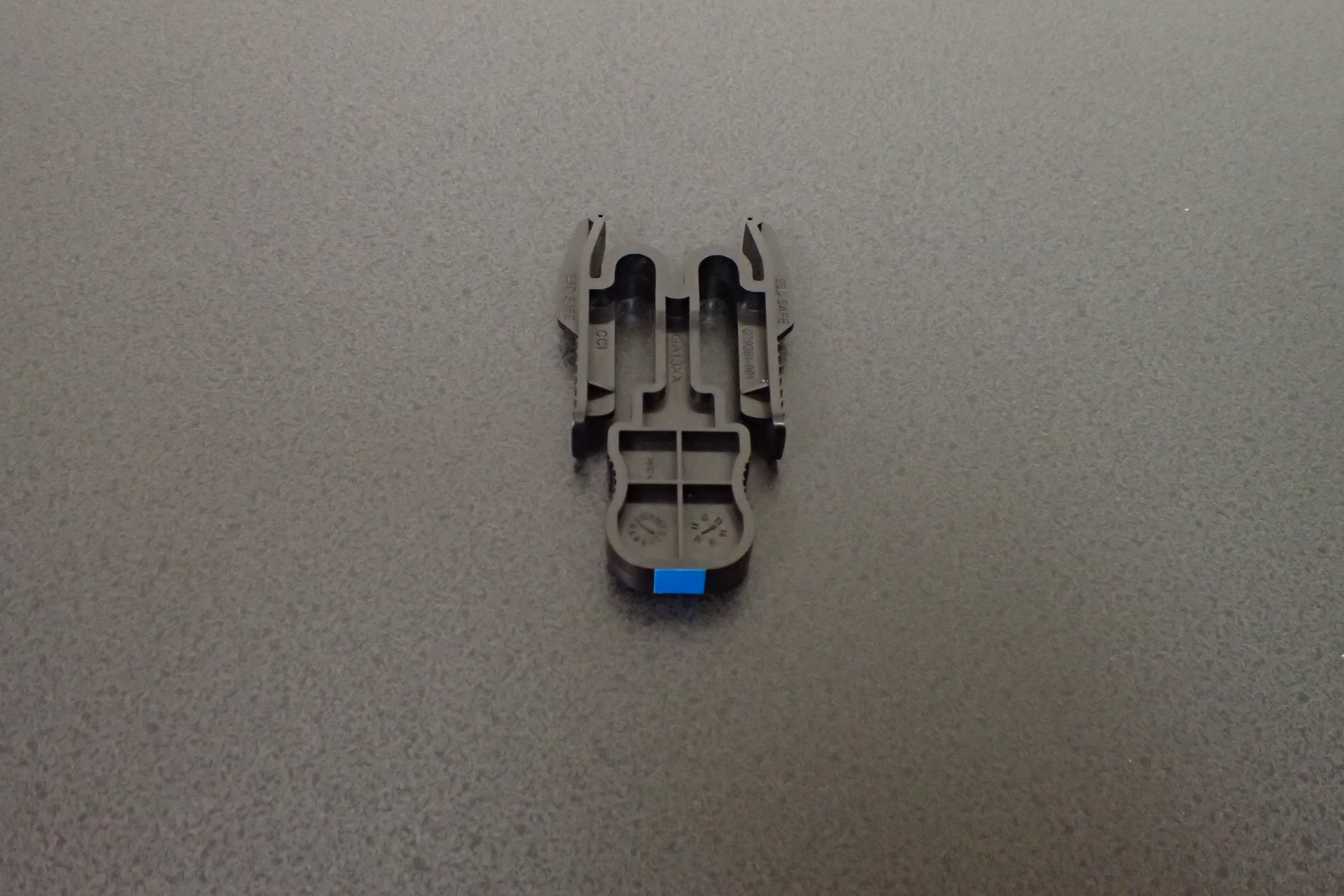

Part Number: G29361
LGA 13XX (Socket B)

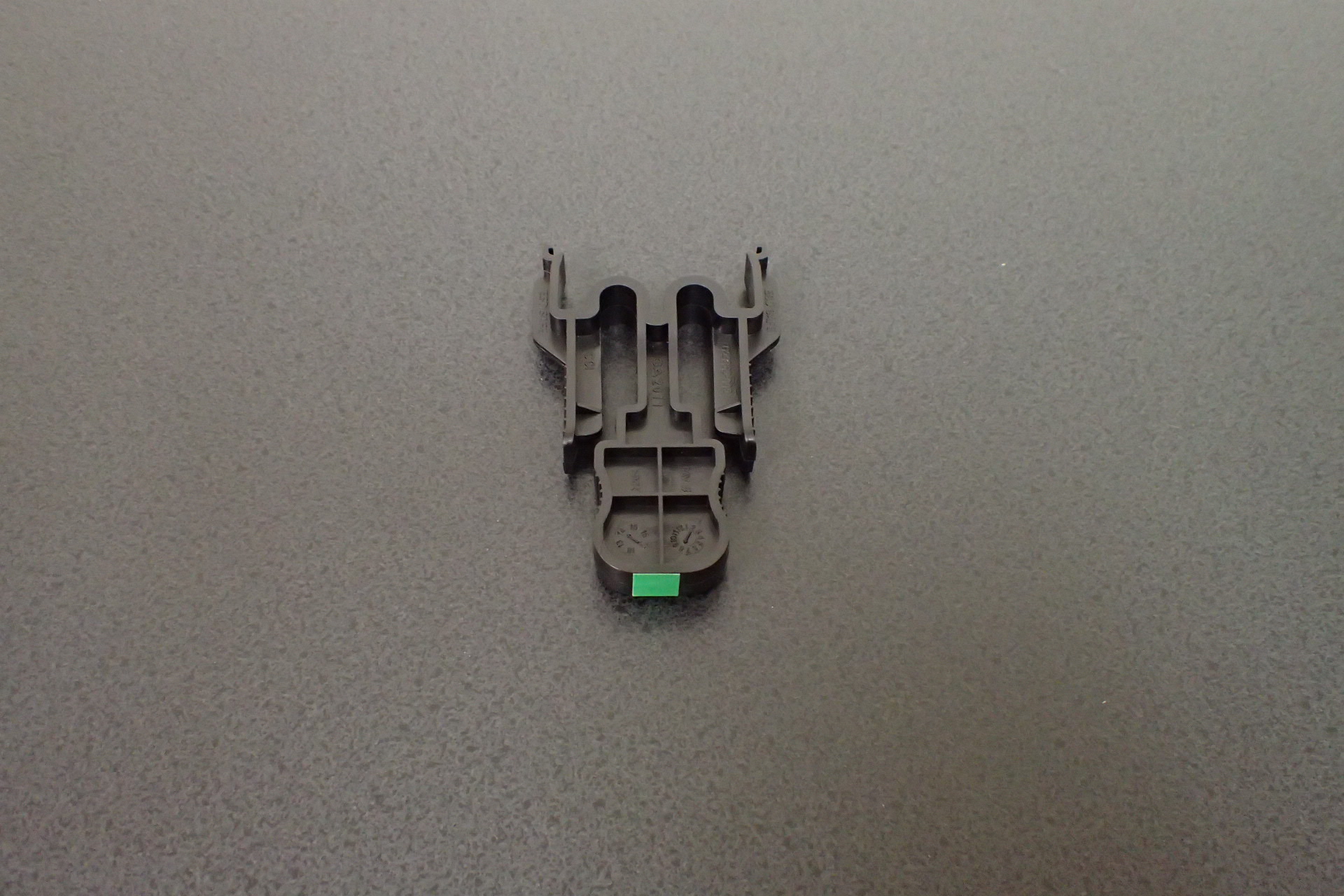

Part Number: G29362
LGA 2011 (Socket R)

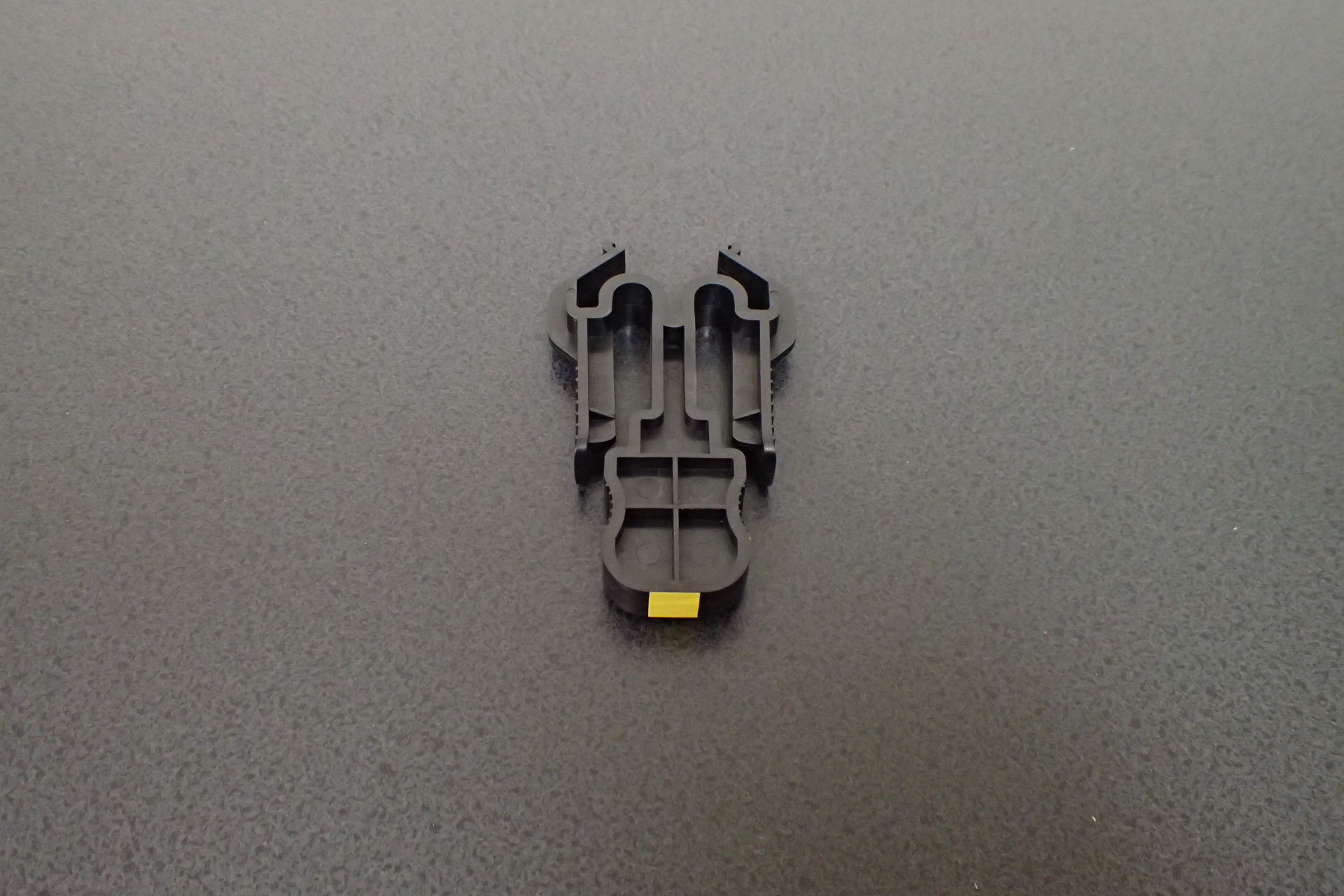

Part Number: G29363
LGA 1567 (Socket LS)
FACTORY PROCESSOR INSERTION/REMOVAL STAGE
ESD COMPLIANT
TOOL STEP TIME(S) 6-15 SECONDS
TOOL LIFE GOAL >100,000 CYCLES

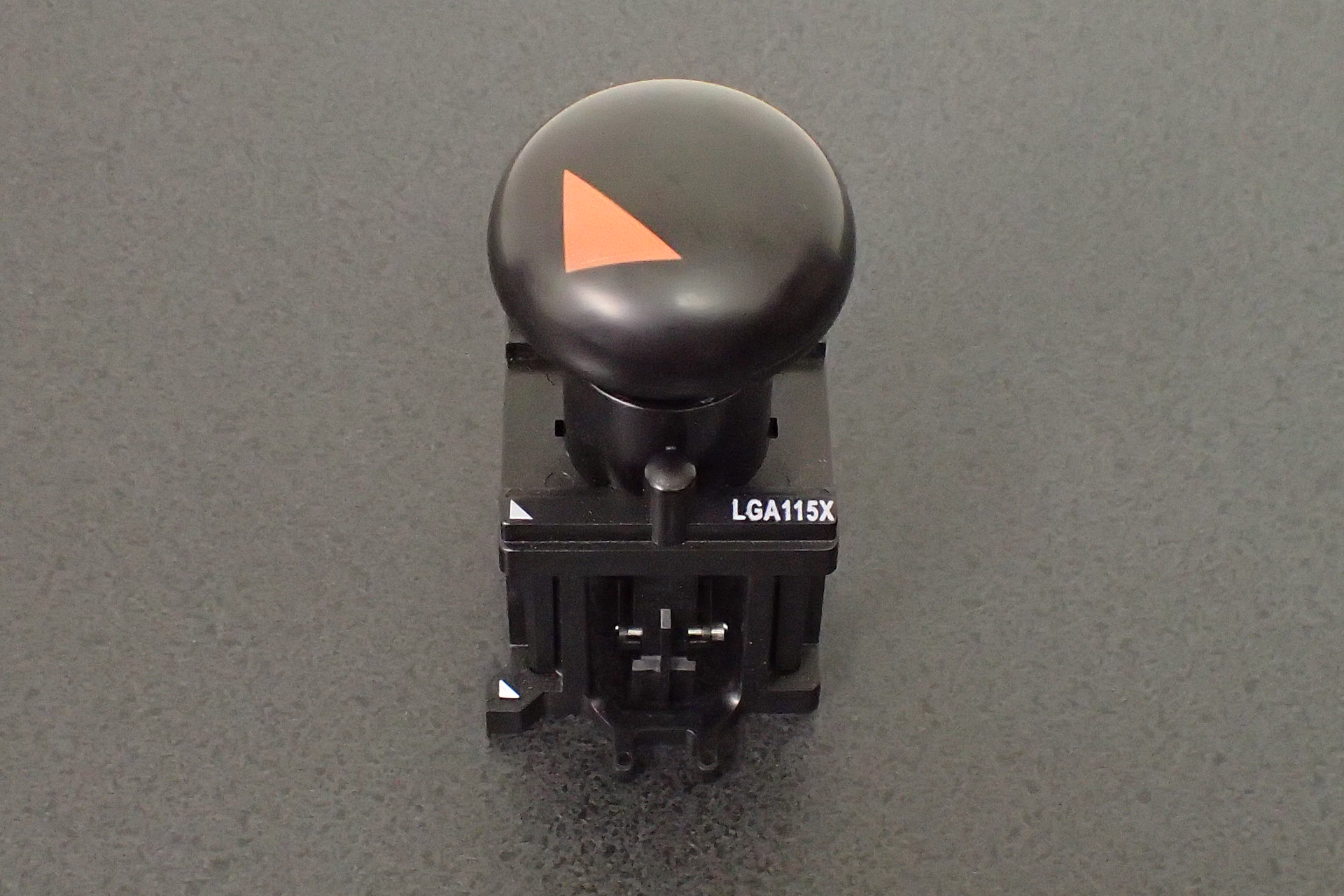

Part Number: G17794
LGA 115X (Socket H4)
Matching Stage: H90628

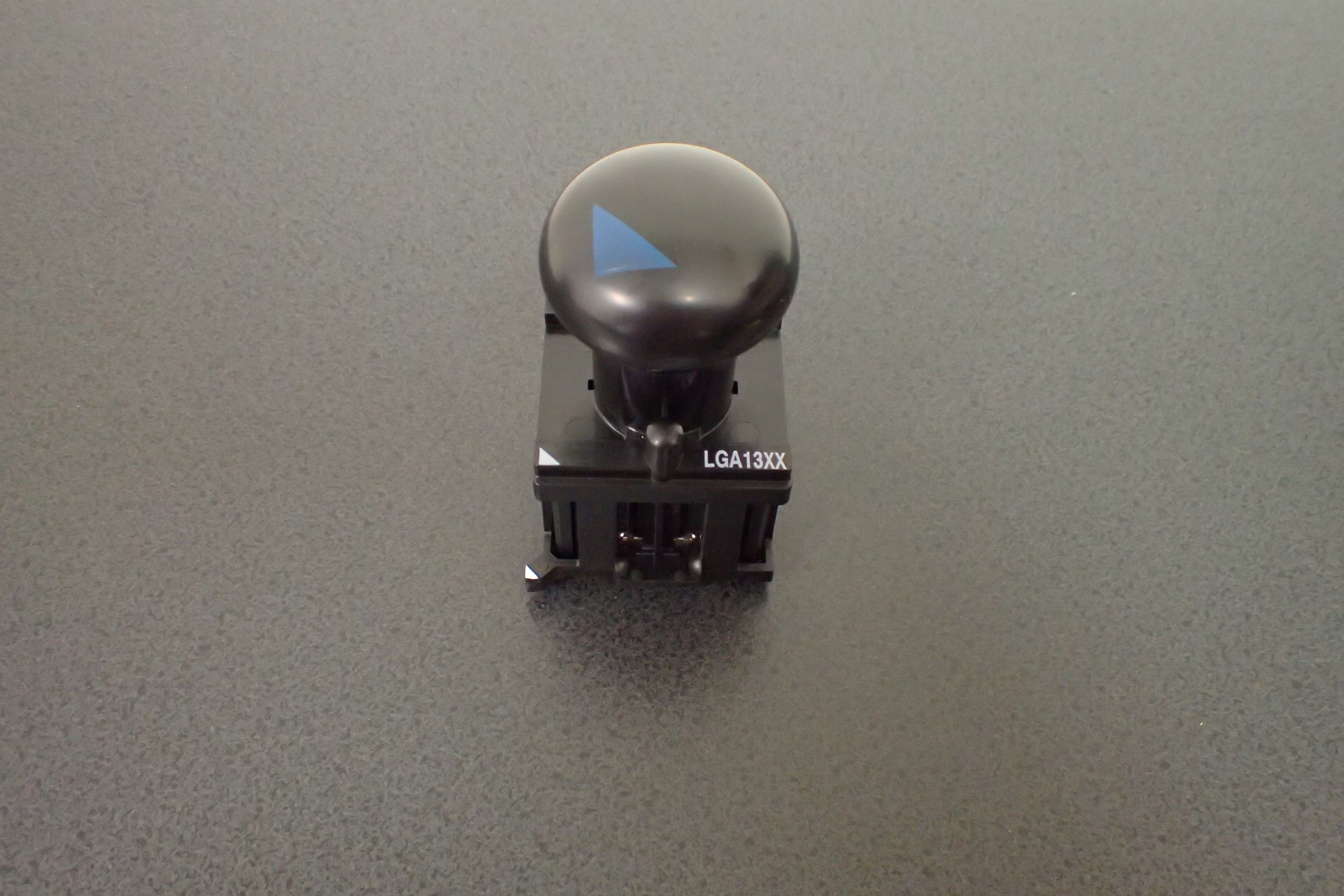

Part Number: G21818
LGA 13XX (Socket B)
Matching Stage: G21826

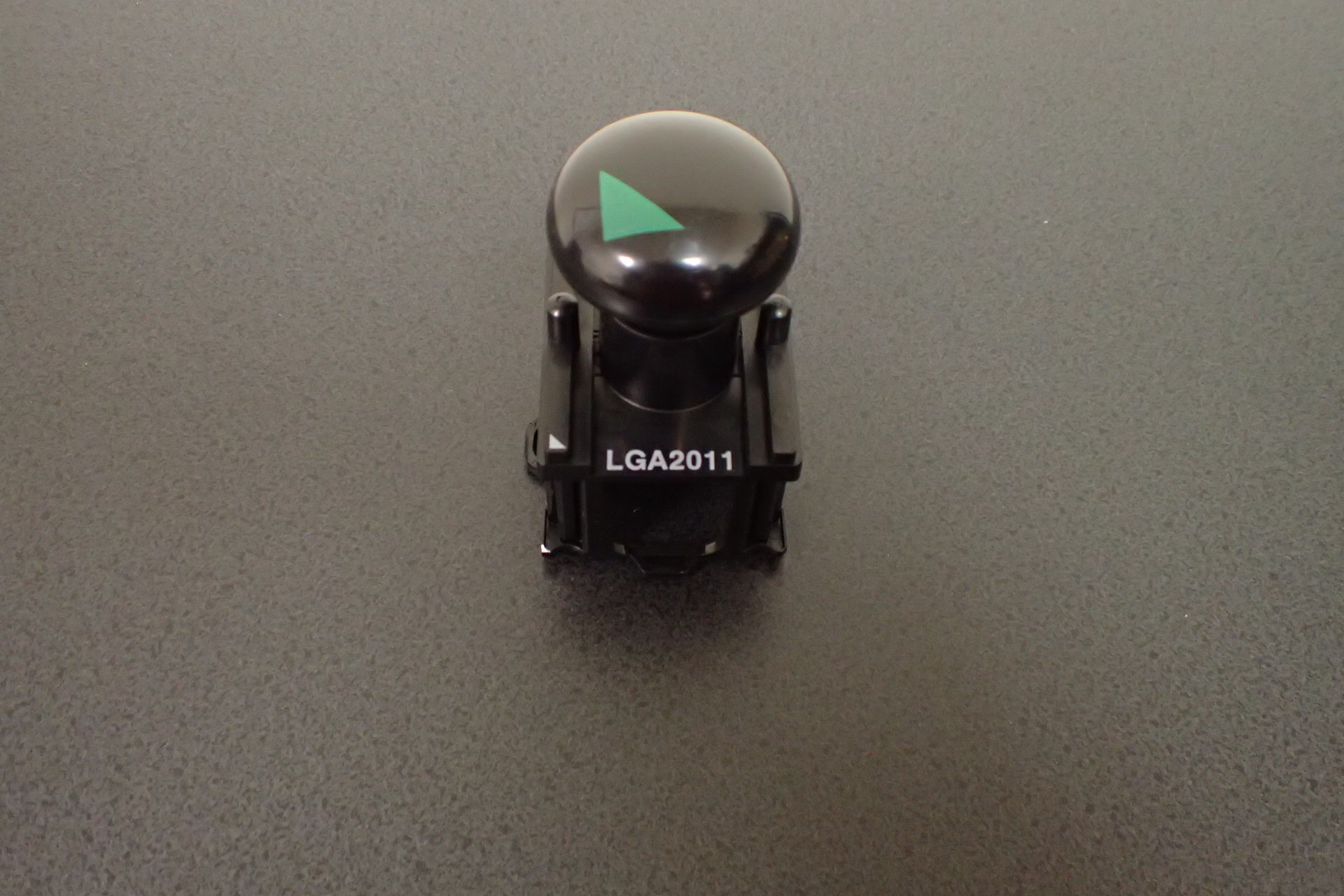

Part Number: G21819
LGA 2011 (Socket R)
Package size 45mm*52.5mm
Matching Stage: G21827

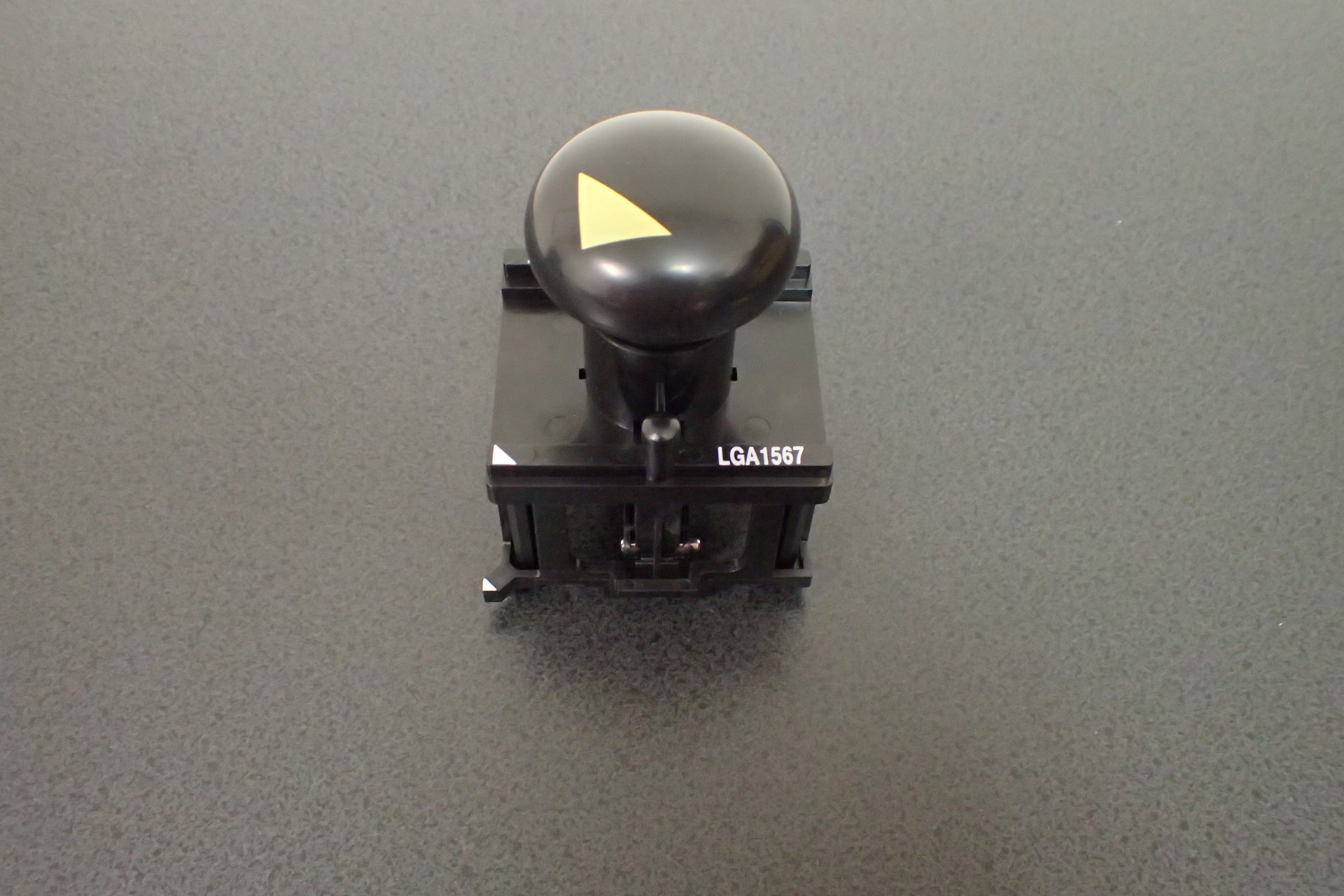

Part Number: G21820
LGA 1567 (Socket LS)
Matching Stage: G21828

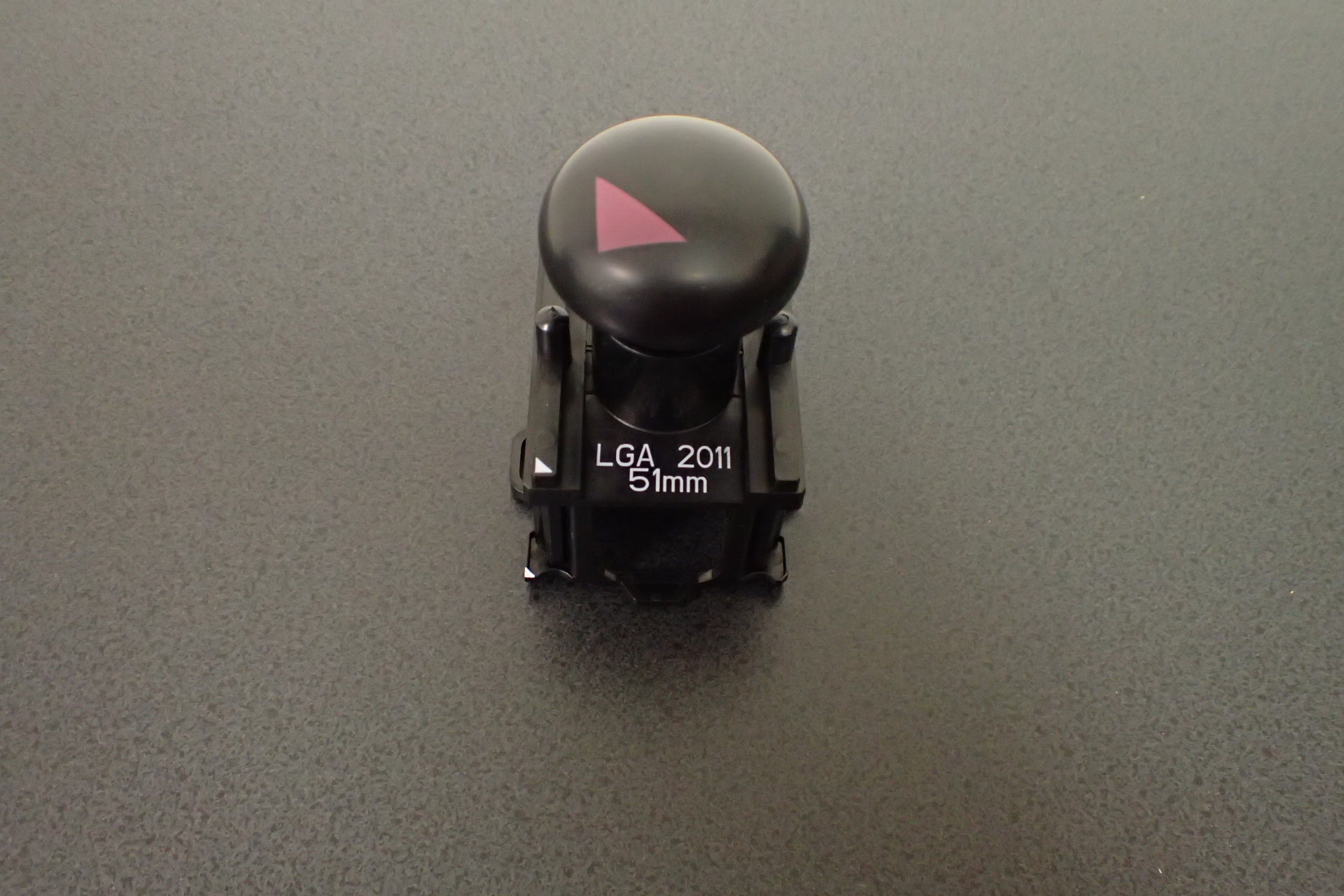

Part Number: G66730
LGA 2011-R51 (Socket R)
Package size 51mm*52.5mm
Matching Stage: G21827

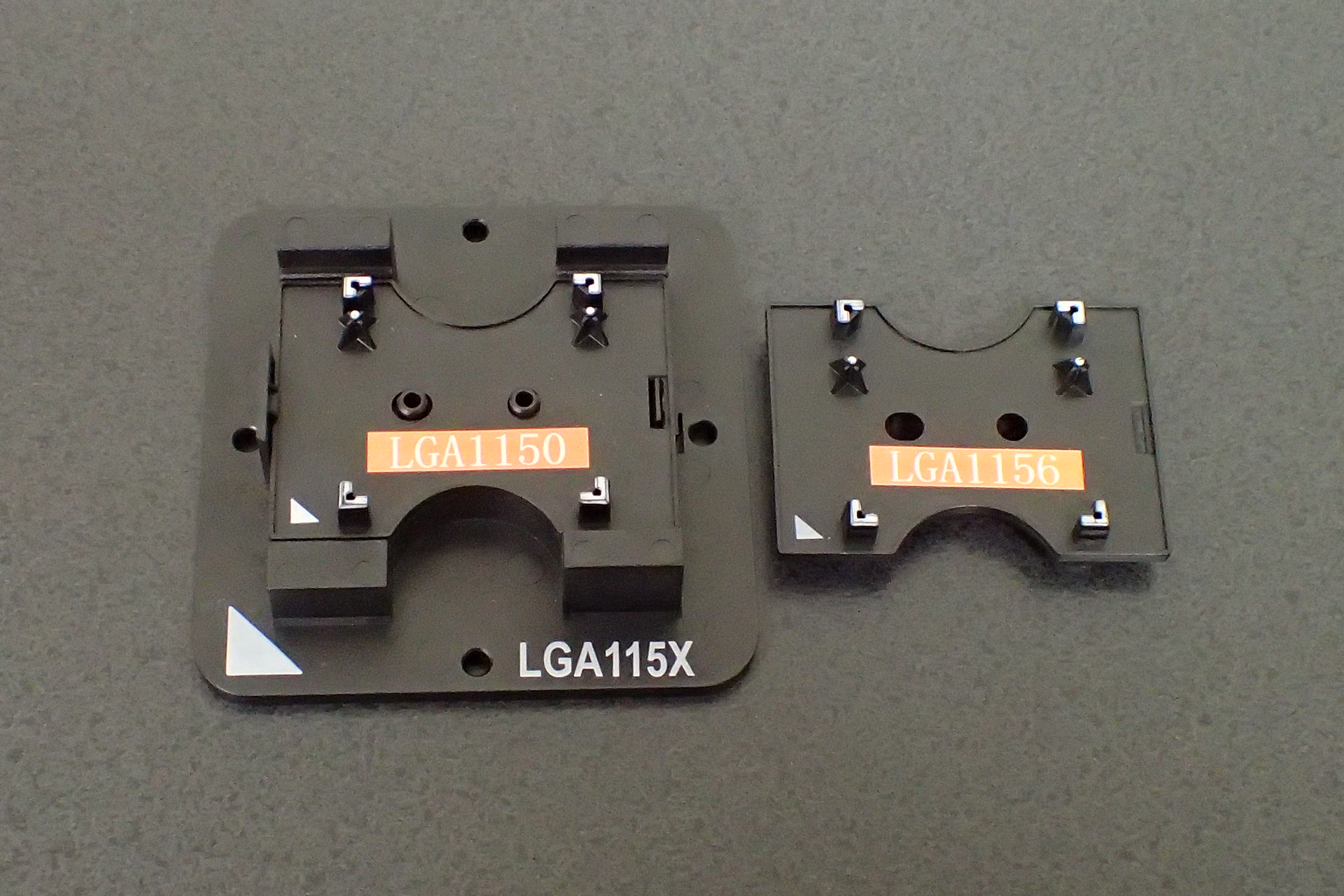

Part Number: H90628
LGA 115X (Socket H4)
Matching Tool: G17794

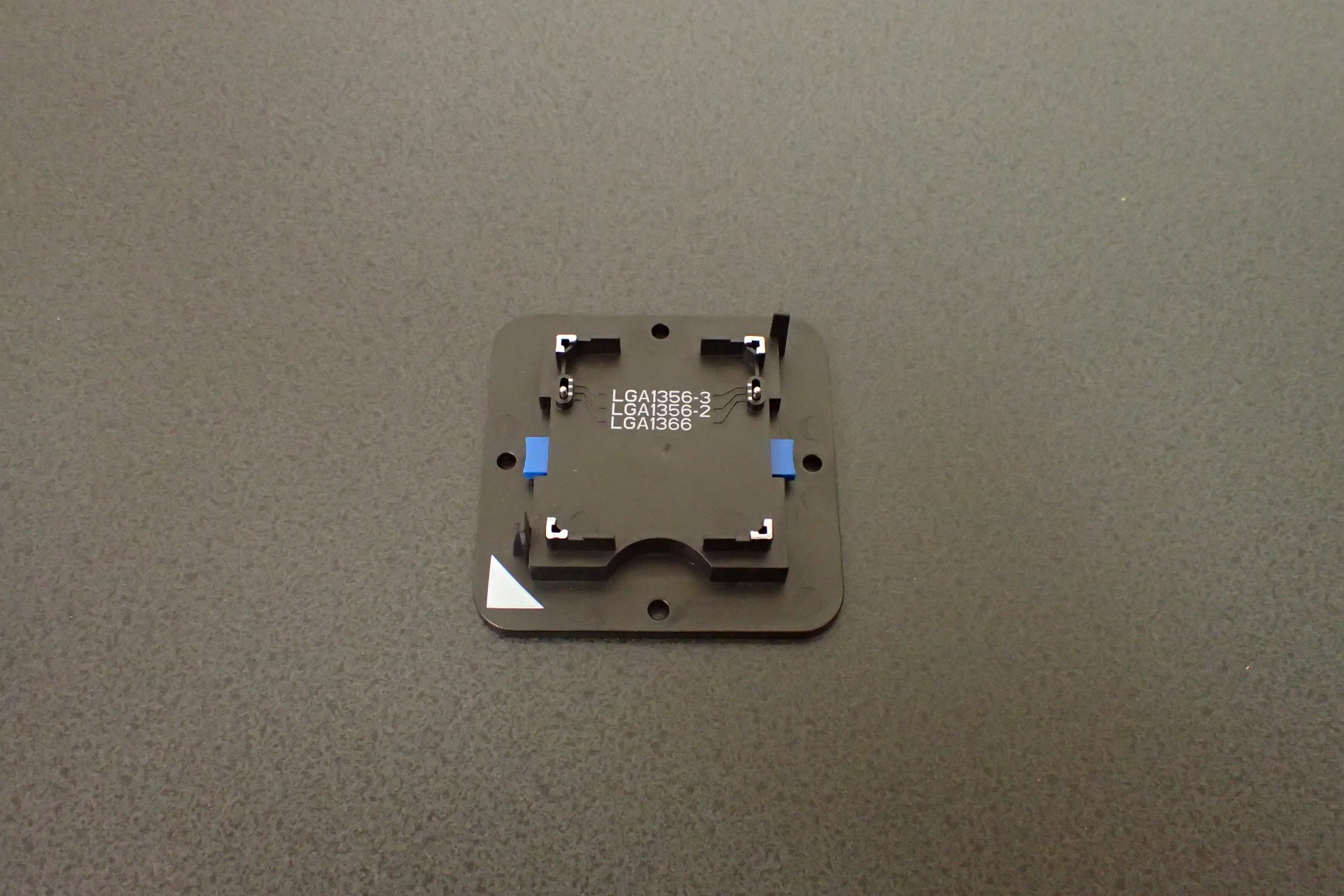

Part Number: G21826
LGA 13XX (Socket B)
Matching Tool: G21818

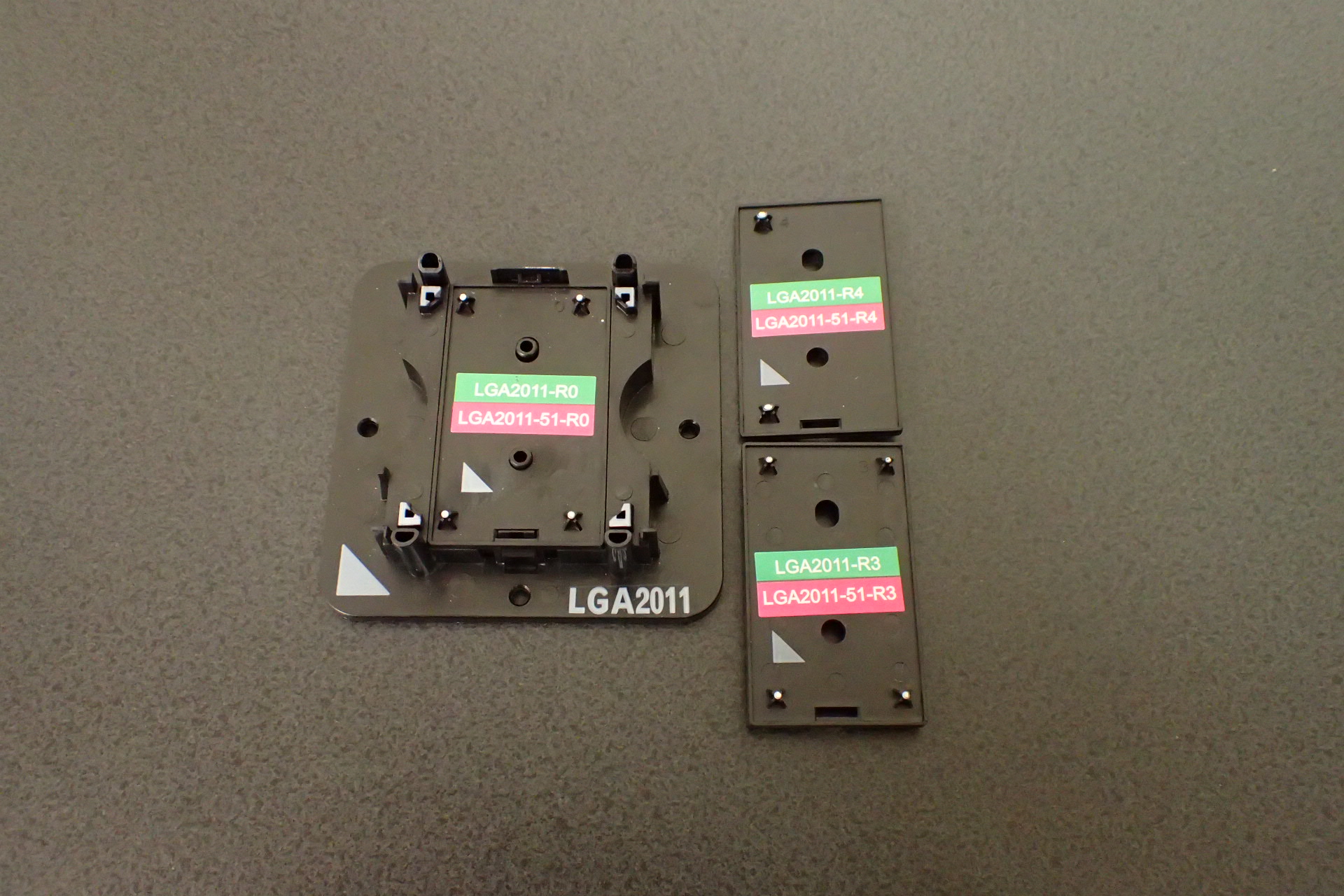

Part Number: G21827
LGA 2011 (Socket R)
Matching Tool: G21819
         and G66730

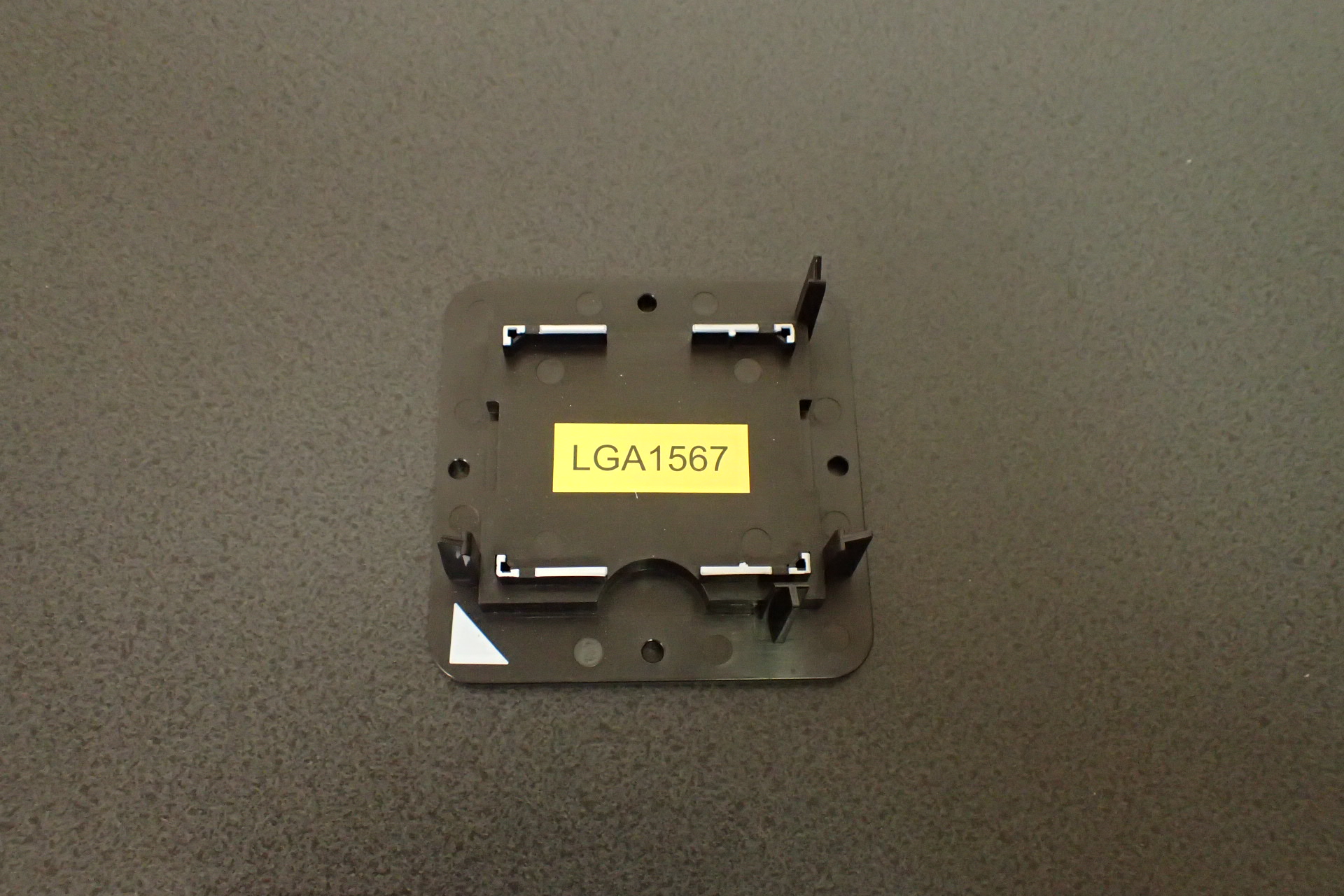

Part Number: G21828
LGA 1567 (Socket LS)
Matching Tool: G21820

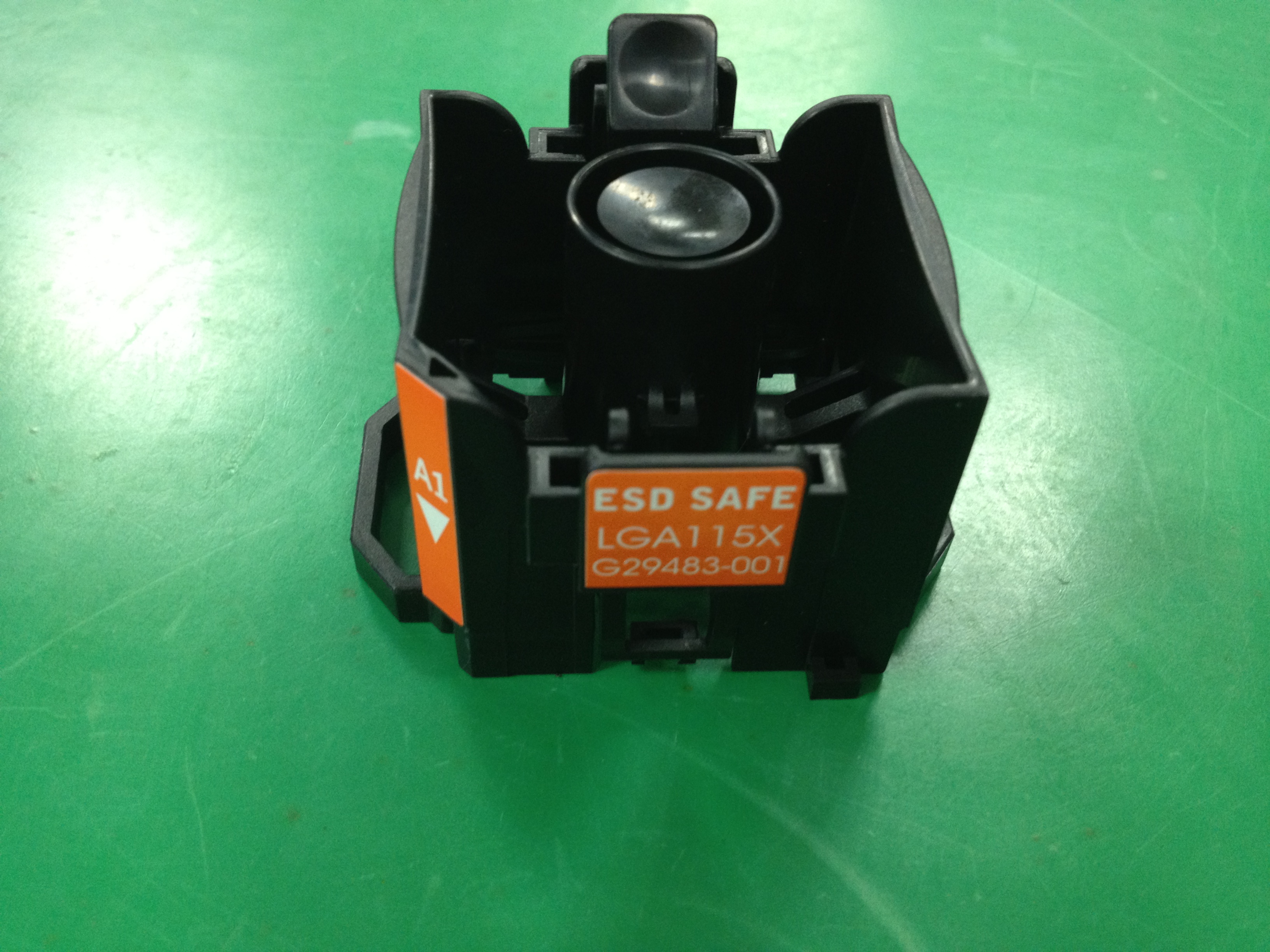

Part Number: G29483
LGA 115X (Socket H)

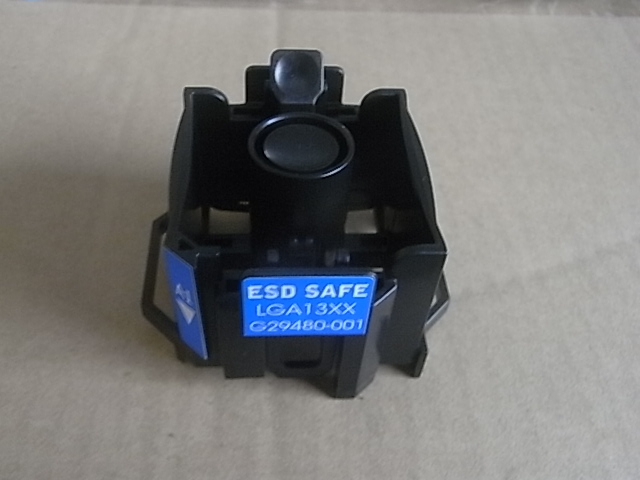

Part Number: G29480
LGA 13XX (Socket B)

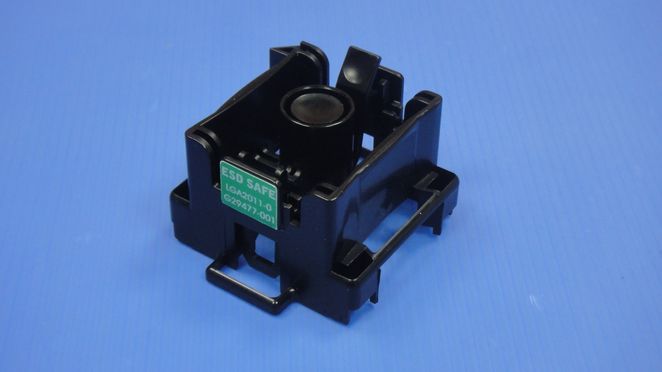

Part Number: G29477
LGA 2011 (Socket R)

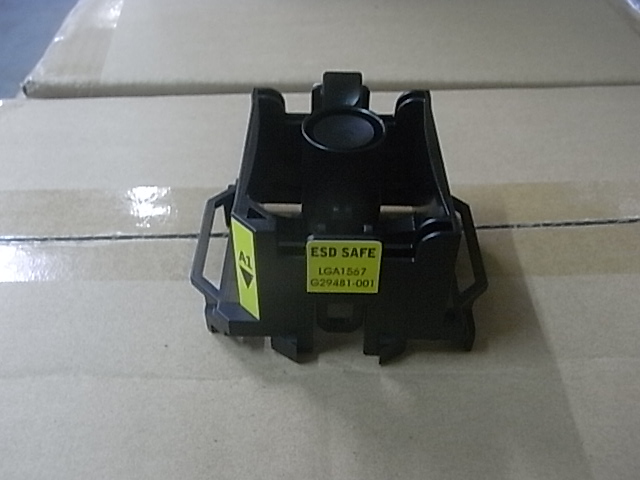

Part Number: G29481
LGA 1567 (Socket LS)

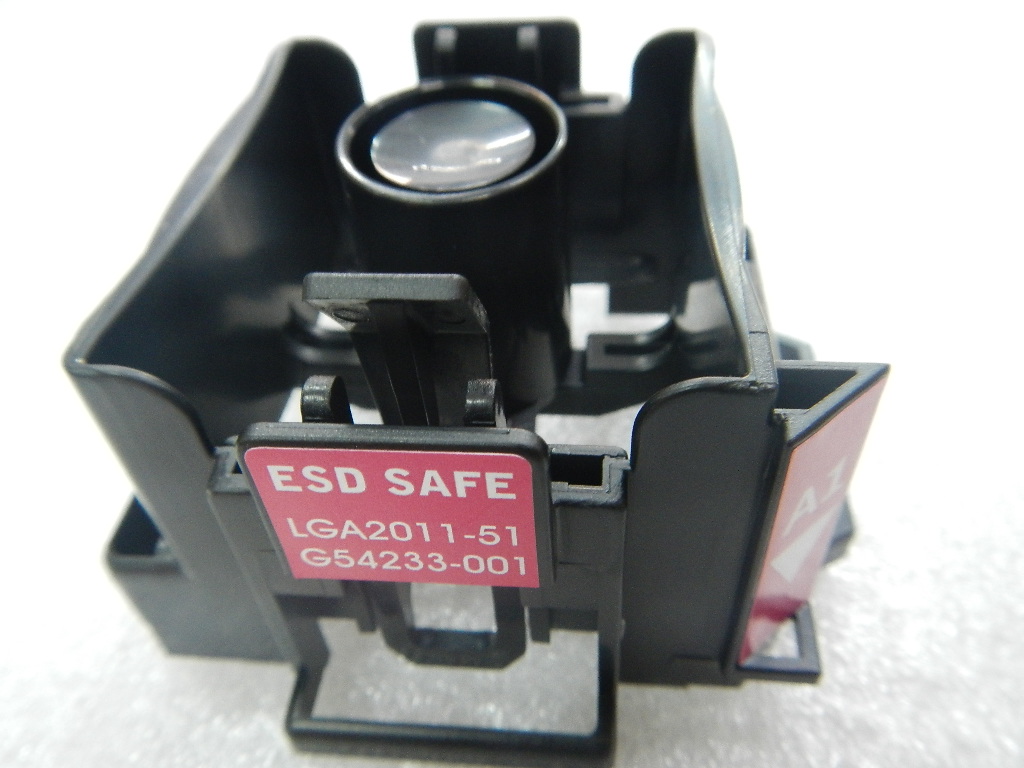

Part Number: G54233
LGA 2011-R51 (Socket R)
Part Number: J25808-001
LGA 3647 Socket P
